PLANOFIL®

PLANOFIL® is the lightest tarpaulin fabric of its kind on the market, but despite its low weight it is still ultra-strong, robust and durable. 100% polyester ripstop with a rib size of 2 x 2 mm. Weatherproof, waterproof, UV-resistant, UPF 50+, dirt-repellent, low-maintenance. Standardised and certified (ISO 9001 and 14001, OEKO-TEX® Standard 100, STeP by OEKO-TEX®).

10 colours to choose from

  • planofil_deep_ocean_blue
    Dark Blue 102
  • planofil_icelandic_green
    Moss Green 106
  • planofil_ivory_coast

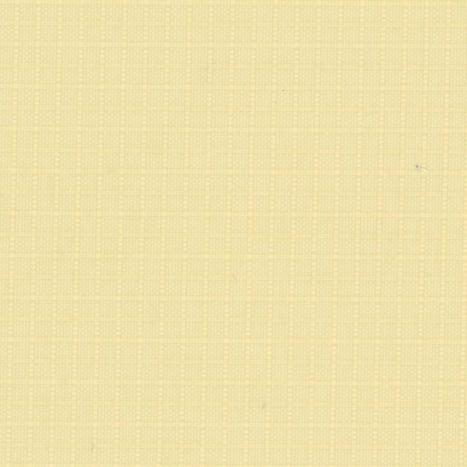

    Ivory 105
  • planofil_mysterious_anthracite

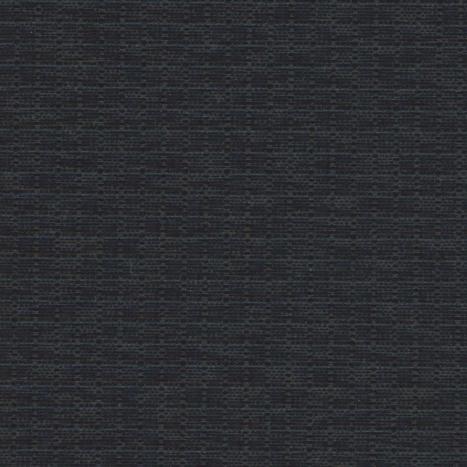

    Anthracite 109
  • planofil_noble_silver
    Silver 110
  • planofil_pure_white
    White 100
  • planofil_relaxing_beige
    Beige 104
  • planofil_sky_blue

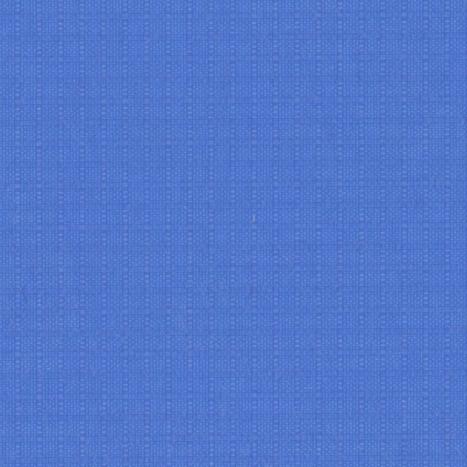

    Light Blue 101
  • planofil_taste_of_bordeaux
    Bordeaux 107
  • planofil_the_only_shade_of_grey
    Grey 103

Information Please log in to see prices and availability.

Business customers: to the login | request new login
Please note that we currently only sell to business customers and therefore cannot issue a login to private customers.

Product description

PLANOFIL® is an extremely resistant yet ultra-lightweight, flexible and easy-to-handle tarpaulin material that is made in Switzerland from 100% polyester and treated with a special eco-friendly PU coating. Reliable value preservation: As a versatile protective cover, PLANOFIL® – with its certified and standardised functional properties – preserves all kinds of objects from damage by external influences. These include rain, wind, snow and ice, heat, UV radiation, seawater, insects and other animals, bird droppings, dirt, dust, etc.

Sustainable: PLANOFIL® significantly extends the service life of boats, cars, motorhomes, motorbikes and garden furniture. But it doesn't end there, the tarpaulin material itself is also robust and built to last.

Benefits

  • 190 g/m2 – the lightest material on the market
  • High tear resistance
  • High tear propagation resistance
  • Waterproof (water column of 2000 mm)
  • Optimum UV protection
  • Space-saving | ultra-small packaging dimensions
  • Easy to handle
  • Dirt-repellent and water-repellent
  • Resistant to seawater
  • Abrasion-resistant
  • Easy-care
  • Excellent sun protection factor of 50+
  • Versatile applications
  • Odour-neutral
  • Eco-friendly PU coating
  • Smooth textile underside
  • Special mould-prevention treatment

Popular areas of application

  • Maritime sector:
    – Covers and canopies for boats (sailing boat, motor boat, dinghies, canoes, etc.)
    – Bimini tops
  • Car cover/vehicle cover (car, motorhome, camper van, motorbike, quad bike, etc.)
  • Cover for furniture (garden furniture, outdoor sofa sets, swing benches, etc.)
  • Protective cover for outdoor areas in general
  • Sun sails, awnings, parasols
  • Privacy screen, splash guard, dust cover

Technical data and standards

Property

Value

Tear resistance
DIN EN ISO 13934-1
Maximum tensile force in newton
Warp 1200 | Weft 1000
Tear propagation resistance
DIN EN ISO 13937-1
Elmendorf in centinewton
Warp 4000 | Weft 3200
Martindale abrasion
ISO 12947-2 (12 kPa)
100,000 cycles
on coated side
Adhesion strength
Scrub test, 500 strokes
No damage
to the coating
Heat test 90 °C
72 hours
Coating against fabric
no adhesive tendency

Coating against coating
weak adhesive tendency
Water column> 200 cm
Colour fastness
150 h Xeno test
Coating 7

Fabric 7

Silver 6
Rub fastness
Crockmeter, 12 cycles
Coating side dry 4 – 5

Coating side wet 4 – 5

Fabric side dry 4

Fabric side wet 4
Bally | Flexometer30,000 strokes room temperature
Spray testFabric side = inside Score 100

Fabric side = outside Score 100
BundesmannCoating side penetration 0 ml

Fabric side penetration 0 ml
Sun protection factor UPF40+
Roll width178 – 180 cm
Roll length30 – 70 running meters
Material100% Polyester
